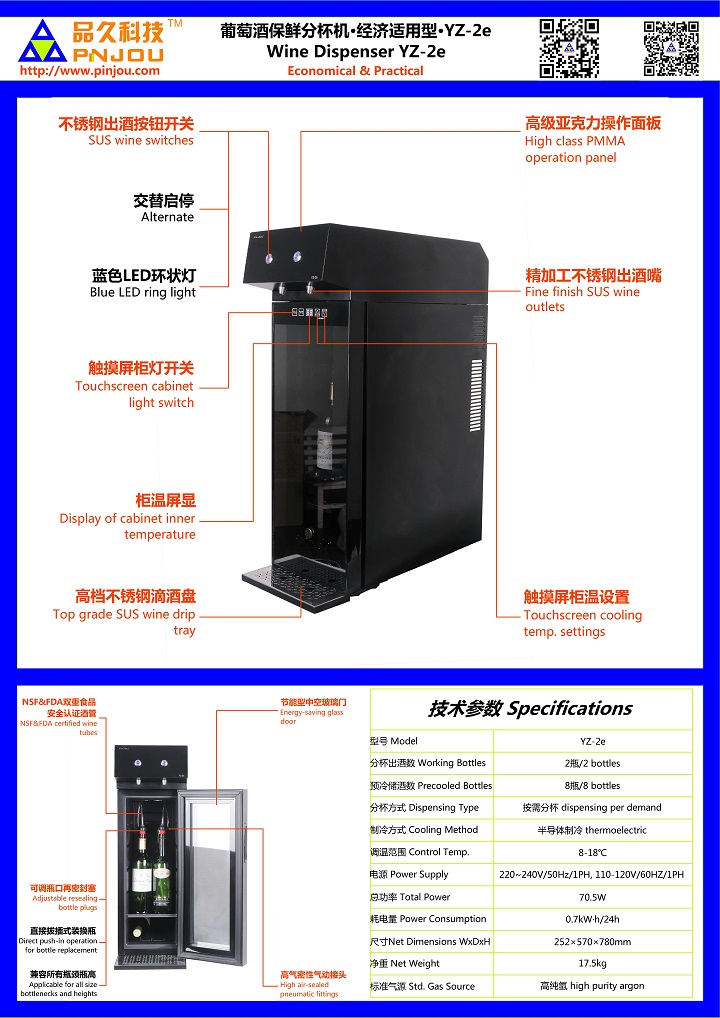

| Model | YZ-2e | |
| Dispensing Bottles | 2 | |
| Precooled Bottles | 8 | |
| Dispensing Type | manually dispensing per demand | |
| Wine Output Level（mL/glass) | manual | |
| Wine Switch Type | button switch with blue lit ring LED | |
| Wine Output Level Shift Switch | _ | |
| Display of Wine Qty. in Bottle | _ | |
| Alarm of Wine/Gas Use-up | _ | |
| Cooling Method | state-of-the-art thermoelectric | |
| Control Temperature (℃) | 8~18 | |
| Power Supply | 220~240V/50Hz/1PH, 110-120V/60HZ/1PH | |
| Total Power (W) | 70.5 | |
| Power Consumption (kW·h/24h) | 0.7 | |
| Net Dimensions（W×D×H，mm） | 252×570×765 | |
| Gross Dimensions（W×D×H，mm） | 332×650×825 | |
| Net Weight（kg） | 17.5 | |
| Gross Weight（kg） | 20.5 | |
| Std. Gas Source | ≥99.999% high purity argon | |
| Outside Material | SUS304, steel, PMMA, coated glass | |
| Std. Accessories | wine tube cleaner (1pcs), pressure reducing valve assembly (1 set) |
|
| Stds. Implemented | GB 4706.1-2005 GB 4806.1-1994 GB/T 23777-2009 GB/T 4842-2006 NSF/ANSI 51-2012 FDA 21 CFR 177.2470 FDA 21 CFR 177.2510 FDA 21 CFR 177.1210 FDA 21 CFR 177.1680 |
|
| Certificates/Tests | CE, FDA, Keeping bottle-opened wines fresh 20-days authoritative test | |
| FCL (pcs) | 20GP | 126 |
| 40GP | 252 | |
| 40HQ | 376 |
